iSWEEP UPGRADE SPRING
click to enlarge

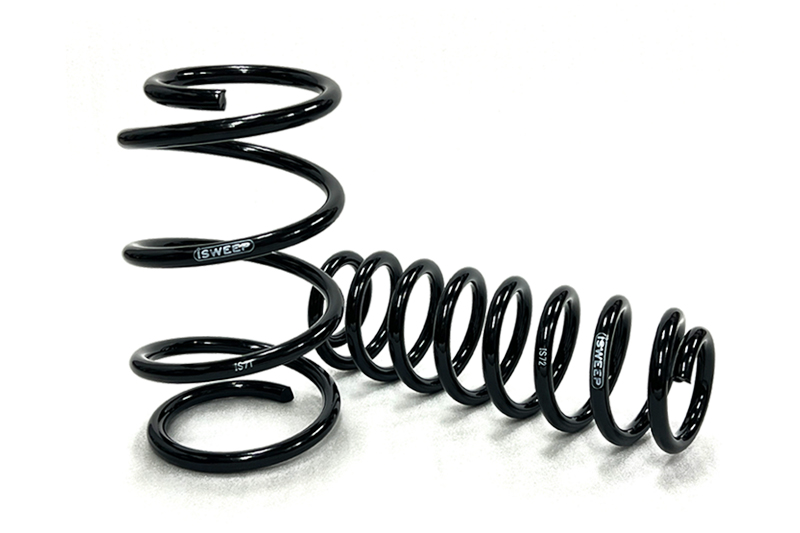

iSWEEP UPGRADE SPRING
The iSWEEP UPGRADE SPRING was engineered to work flawlessly with factory OE shock absorbers while dropping the height of the vehicle. The design concept for these springs was to bring out the best qualities of the electronically controlled DCC suspension struts and to set the most ideal ride height. When compared to other “lowering springs”, iSWEEP emphasized on easing the micro-shock vibrations and improving the rebound characteristics that actually makes spirited driving fun, whether on the highway or twisted mountain roads. This new concept is remarkably harmonious to seamlessly function with the dynamic characteristics of the DCC suspension where switching dampening modes are very frequent.
AUDI
MODEL   YEAR TYPE SPRING
TYPE
SPRING
SET#
FRONT
PARTS#
REAR
PARTS#
LOWERING
(mmm)
SPRING RATE
F/R (kg/mm)
S3 (8V) Sportback 2.0 TFSI Quattro 2014- 8VCJXF/8VDJHF Lower IS7374 IS73 IS74 F:-10/R:-10 3.42/4.73
S3 (8V) Sedan 2.0 TFSI Quattro 2014- 8VCJXL/8VDJHL Lower IS7374 IS73 IS74 F:-10/R:-10 3.42/4.73
S3 (8Y) Sportsback 2.0 TFSI Quattro 2021- GYDNFF Lower IS7374 IS73 IS74 F:-10/R:-10 3.42/4.73
S3 (8Y) Sedan 2.0 TFSI Quattro 2021- GYDNFF Lower IS7374 IS73 IS74 F:-20/R:-20 3.42/4.73
Q5 (FY) 45 TFSI Quattro 2019- FYDAXS/FYDGKS Lower IS7778 IS77 IS78 F:-35/R:-40 6.05/5.72
  40TDI Quattro S-Line 2019- FYDTPS Lower IS7778 IS77 IS78 F:-35/R:-40 6.05/5.72
Q5 (FY) Sportback 40 TDI Quattro 2021- FYDTPS Lower IS7778 IS77 IS78 F:-35/R:-40 6.05/5.72
SQ5 (FY) 3.0 TFSI Quattro 2021- FYCWGS Lower IS7778 IS77 IS78 F:/R: 6.05/5.72
SQ5 (FY) Sportback 3.0 TFSI Quattro 2021- FYCWGS Lower IS7778 IS77 IS78 F:/R: 6.05/5.72
VOLKSWAGEN
MODEL   YEAR TYPE SPRING
TYPE
SPRING
SET#
FRONT
PARTS#
REAR
PARTS#
LOWERING
(mmm)
SPRING RATE
F/R (kg/mm)
GOLF7/7.5 GTI 2014- AUCHH Lower IS7172 IS71 IS72 F-10:/R:-15 3.44/4.07
  GTI Clubsport 2016 AUCJX Lower IS7172 IS71 IS72 F0-5:/R:-5 3.44/4.07
  R 2014- AUCJXF/AUDJHF Lower IS7374 IS73 IS74 F:-10/R:-10 3.42/4.73
  Varinat R 2015- AUCJXF/AUDJHF Lower IS7374 IS73 IS74 F:-10/R:-15 3.42/4.72
GOLF8 GTI 2022- CDDNP Lower IS7172 IS71 IS72 F:/R: 3.44/4.07
  R 2022- CDDNF Lower IS7374B IS73B IS74 F:-10/R:-15 3.42/4.73
  Varinat R 2022- CDDNFV Lower IS7380B IS73B IS80 F:-10/R:-5 3.42/4.72
POLO (AW/BZ) GTI 2018- AWCZP/AWDNN Lower IS7576 IS75 IS76 F:-20/R:-25 3.09/2.22
