iSWEEP EA-888 Gen 2 & 3

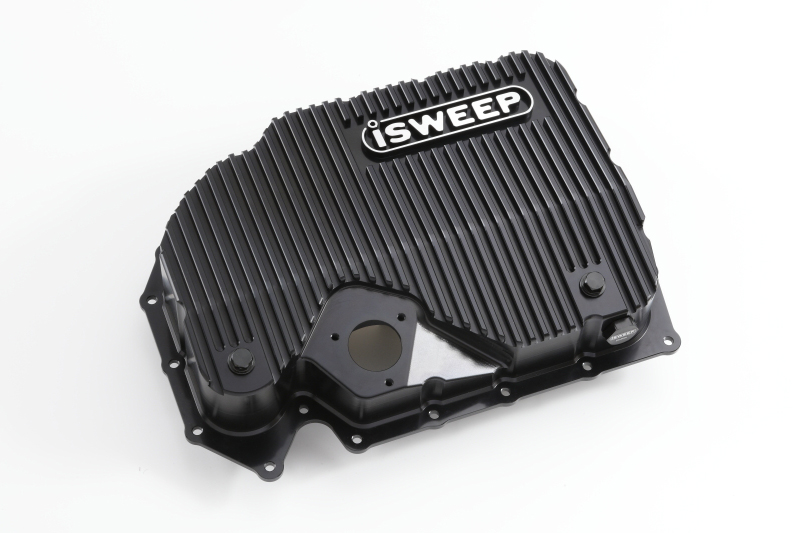

ALUMINUM ENGINE OIL PAN
ALUMINUM ENGINE OIL PAN
■CNC Machined from solid 6061-T6 Aluminum Billet
While others use casting or welded sheet metals, utilizing billet material eliminates the chance of failure from material defects such as poor manufacturing tolerance, casting porosity, welding imperfection, and structural warpage.

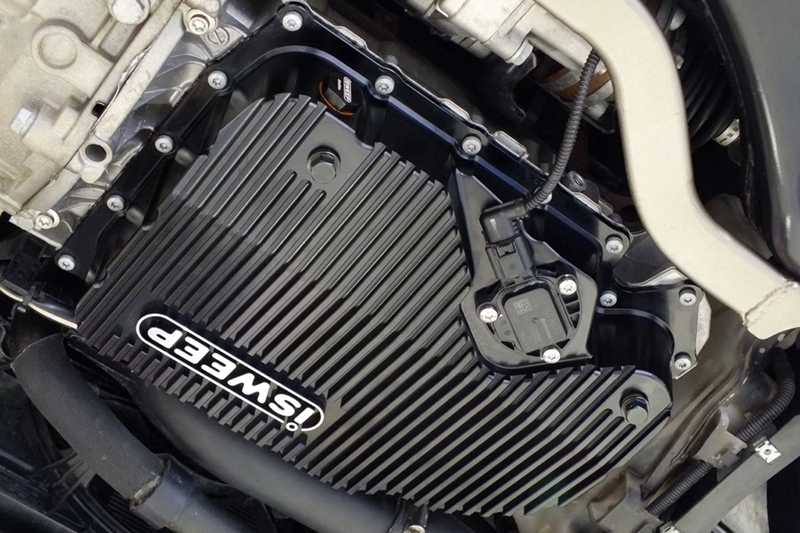

■Integrated Cooling Fins
This feature helps cooling and stabilizing engine's oil temperature, keeping it from spiking during harsh driving condition at race track. It also add structural strength against grounding due to road hazards.

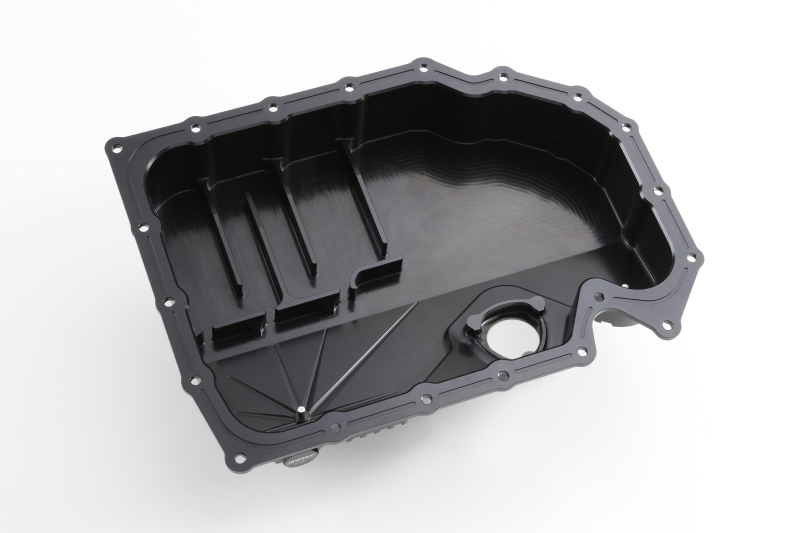

■Compartmentalize Baffling
This feature is designed to prevent oil slushing around during hard cornering, ensuring stable oil supply around the pick up area.
■Increased Oil Capacity
The slightly larger oil pan accommodates extra 1 quart/liter (0.26 gal) of oil capacity. The additional oil helps with both temperature control and stable oil supply.

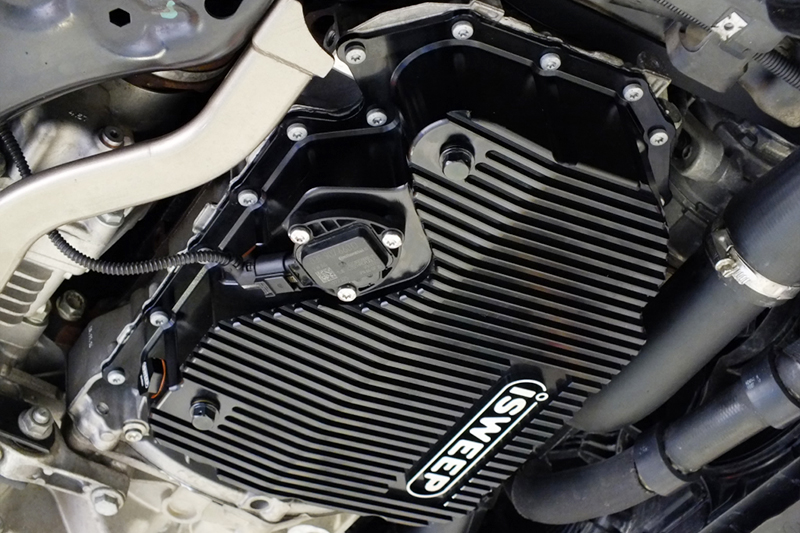

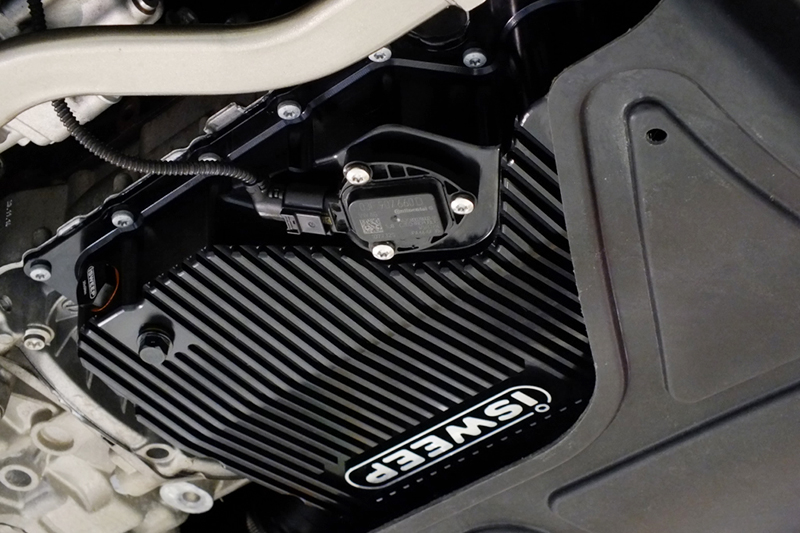

■Factory Oil Level Sensor Mounting Provision
OEM oil level sensor mounts directly on iSWEEP oil pan. Its position is adjusted to sense the additional 1 quart/liter of motor oil, a good warning system like your fuel gauge. When the oil level warning goes off you still have a good buffer before the oil actually goes bellow factory recommended level.
■Dual Drain Plug
The perfect feature for DIY. Most do not have lift at home and constraint to limited working space. So for self-doer that only able to jack the car up from one side of the car, the dual drain ports allow you to use the lowest position one for complete drainage.

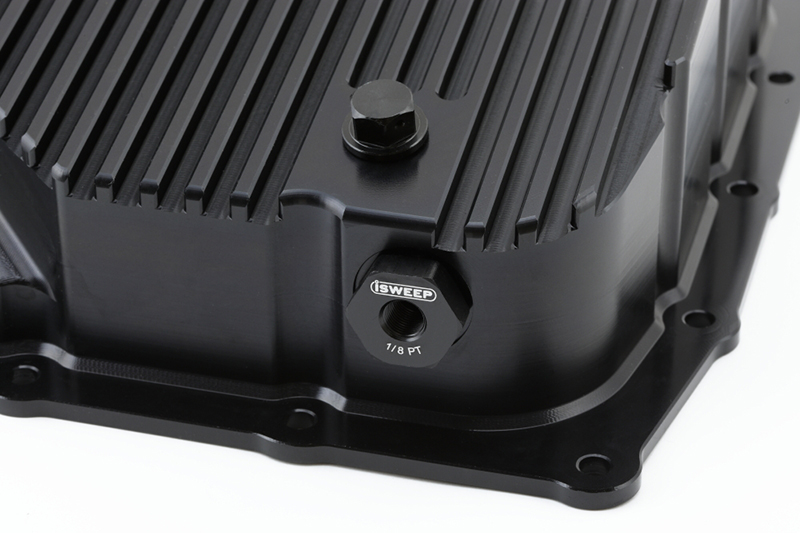

■Oil Temperature Gauge Port

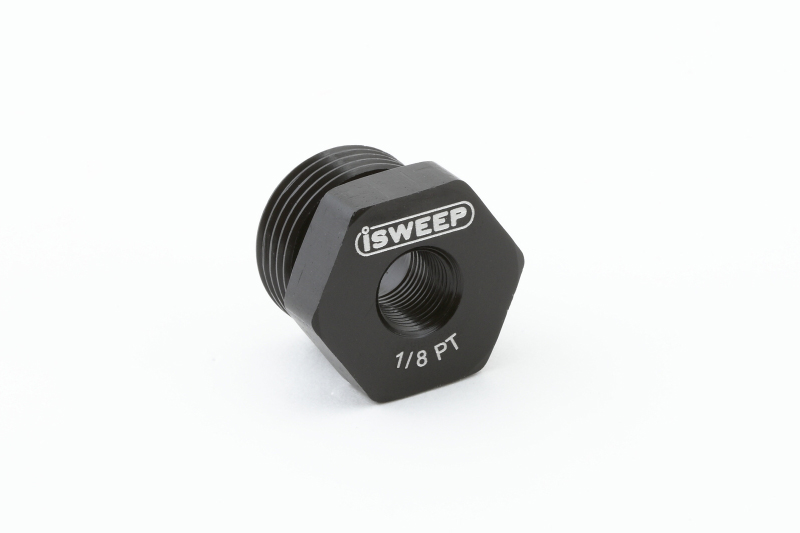

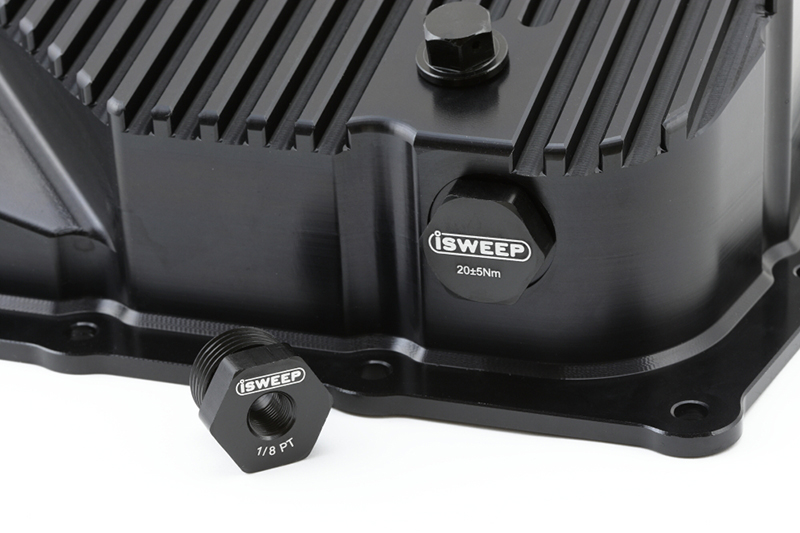

Provision for oil temperature gauge is included with the kit. Just replace the solid plug with the included 1/8 TP adapter.
■OEM+ Size

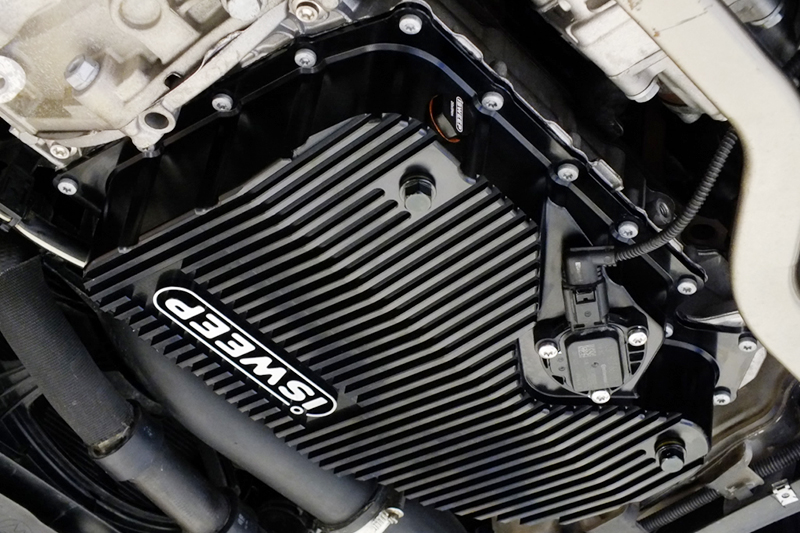

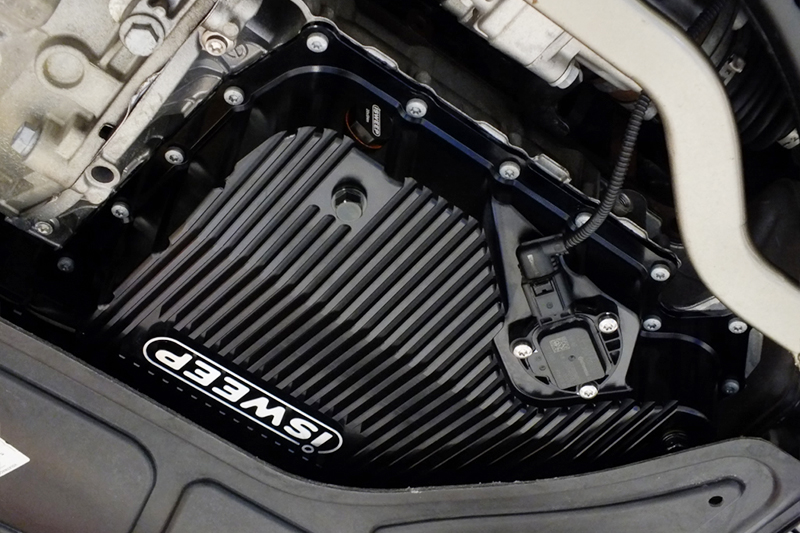

iSWEEP oil pan sits above subframe and compatible with factory plastic under tray. No modification, straight bolt-on using factory screws and gasket. Compatible with all iSWEEP chassis braces.
| AUDI | ||||
| VEHICLE | YEAR | ENGINE CODE | PART NO | |
| A3（8V） | 1.8/2.0 TFSI Quattro | 2014- | 8VCJSF（L）/8VCZPF（L） | IS-EOP-EA888 |
| TT（8J） | 2.0 TFSI | 2011-2015 | 8JCES | IS-EOP-EA888 |
| 2.0 TFSI Quattro | 2008-2015 | 8JCCZF/8JCESF | IS-EOP-EA888 | |
| TT（8S） | 2.0 TFSI | 2016- | FVCHH | IS-EOP-EA888 |
| 2.0 TFSI Quattro | 2016- | FVCHHF | IS-EOP-EA888 | |
| TTS | 2016- | FVCJXF | IS-EOP-EA888 | |
| S3（8V） | 2.0 TFSI Quattro | 2014- | 8VCJXF（L）/8VDJHF（L） | IS-EOP-EA888 |
| VOLKSWAGEN | ||||
| VEHICLE | YEAR | ENGINE CODE | PART NO | |
| GOLF6 | GTI | 2010-2013 | 1KCCZ | IS-EOP-EA888 |
| GOLF7/7.5 | GTI | 2014- | AUCHH/AUCJX/AUDLB | IS-EOP-EA888 |
| R | 2014- | AUCJXF/AUDJHF | IS-EOP-EA888 | |
| TIGUAN | 2.0 TFSI 4Motion | 2009-2012 | 5NCAW/5NCCZ | IS-EOP-EA888 |
| THE BEETLE | 2.0 TSI | 2014- | 16CPL | IS-EOP-EA888 |
| EOS | 2.0 TFSI | 2009-2010 | 1FCAW | IS-EOP-EA888 |
| PASSAT（B6） | 2.0 TSI | 2008-2010 | 3CCAW/3CCCZ | IS-EOP-EA888 |
| PASSAT CC | 2.0 TSI | 2009- | 3CCAWC/3CCCZC | IS-EOP-EA888 |
| PASSAT Alltrack | 2.0 TSI | 2012- | 3CCCZF | IS-EOP-EA888 |
| SCIROCCO | 2.0 TFSI | 2010-2013 | 13CAW/13CCZ | IS-EOP-EA888 |
| POLO（AW） | GTI | 2018- | AWCZP | IS-EOP-EA888 |
